JJRC C8842 RC Crawler Body Installation & Disassembly Guide
The JJRC C8842 is a 1/30 scale full-proportional RC desktop crawler designed for realistic crawling and compact off-road adventures. Its realistic body design, detailed chassis and proportional control system provide an authentic RC crawling experience in a compact size.
If you are looking for a JJRC C8842 body installation guide, JJRC C8842 body shell removal tutorial, or instructions on how to install and remove the C8842 body shell, this guide walks through both processes step by step.
JJRC C8842 Body Installation & Disassembly Video
Watch the complete JJRC C8842 body installation and disassembly video above to see how the body clips connect to the chassis, how the shell is aligned and secured, and how the body can be removed when maintenance or inspection is required.
Part 1: How to Install the JJRC C8842 Body Shell
Installing the JJRC C8842 body shell is a simple process once you understand the location and position of the body clips. The following three steps show how to correctly align and secure the C8842 body shell onto the chassis.
Step 1: Locate the JJRC C8842 Body Clip
Step 1 — Find the body shell mounting clip
Before installing the body shell, first locate the JJRC C8842 body clip and identify the corresponding mounting position on the chassis.
Understanding the clip position before applying pressure helps ensure that the body shell is installed correctly and reduces unnecessary stress on the mounting points.
Recommended ALT: JJRC C8842 body clip location for RC crawler body installation

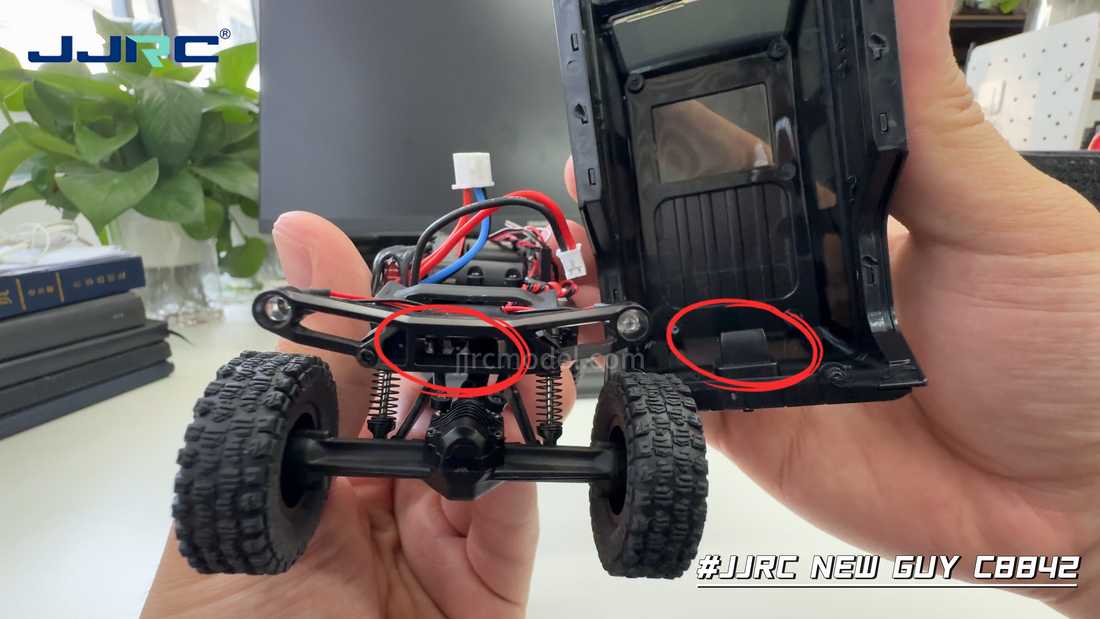

The first photo shows the JJRC C8842 body clip location. This is the starting point for correctly installing the body shell.
Step 2: Align the Body Shell and Body Clip
Step 2 — Align the body clip with the mounting position
Place the JJRC C8842 body shell over the chassis and carefully align the body clip with the corresponding mounting point.
Make sure the clip is positioned correctly before applying pressure. Proper alignment allows the body shell to sit naturally on the chassis and makes the installation process easier.
Recommended ALT: JJRC C8842 body clip alignment during RC crawler body shell installation
The second photo shows the correct JJRC C8842 body clip alignment. Check that the body shell and chassis mounting points are properly matched before moving to the next step.
Step 3: Press the Body Clip Into Place
Step 3 — Press and secure the body clip
Once the body clip is correctly aligned, gently press the clip into the mounting position. The clip should engage with the chassis and secure the body shell in place.
Use controlled pressure instead of forcing the clip. If the clip does not engage smoothly, check the alignment of the body shell and mounting point before pressing again.
Recommended ALT: How to press and secure the JJRC C8842 body clip during installation
After all body clips are secured, check that the body shell sits evenly on the chassis and does not move excessively.
Part 2: How to Remove the JJRC C8842 Body Shell
Removing the JJRC C8842 body shell is essentially the reverse of the installation process. Carefully release the body clips and separate the shell from the chassis.
Body removal can be useful when you need to inspect the chassis, clean the vehicle, check internal components or perform routine maintenance.
Step 1: Release the JJRC C8842 Body Clips
Step 1 — Release the body shell mounting points
To begin the JJRC C8842 body shell removal process, carefully release the body clips from their mounting positions.
Do not pull the body shell forcefully. Release the clips carefully and gradually separate the shell from the chassis.
Recommended ALT: JJRC C8842 RC crawler body shell removal and disassembly
The fourth photo shows the beginning of the JJRC C8842 body removal process. Once the mounting clips are released, the body shell can be separated from the chassis.
Step 2: Completely Remove the C8842 Body Shell
Step 2 — Completely separate the body shell from the chassis
Continue releasing the remaining mounting points carefully until the JJRC C8842 body shell is completely separated from the chassis.
Once removed, place the body shell somewhere safe while performing inspection, cleaning or maintenance on the vehicle.
Recommended ALT: JJRC C8842 body shell completely removed from RC crawler chassis
The fifth photo shows the JJRC C8842 body shell completely removed from the chassis. With the body removed, the internal structure of the crawler is easier to access.
JJRC C8842 Body Installation Checklist
- Locate the correct body clip mounting position.
- Align the body shell with the chassis.
- Make sure each body clip is correctly positioned.
- Press the clips gently into place.
- Confirm that all clips are fully secured.
- Make sure no wires or components are trapped between the shell and chassis.
- Check that the wheels and suspension move freely.
- Confirm that the body shell is secure before driving.
JJRC C8842 Body Removal for Maintenance
Removing the body shell provides easier access to the C8842 chassis and internal components. This can be useful for routine inspection, cleaning and maintenance.
For owners who use the C8842 for desktop crawling, indoor obstacles or outdoor off-road driving, knowing how to correctly remove and reinstall the body shell makes routine maintenance easier.
Why JJRC C8842 Is Built for Realistic RC Crawling
The JJRC C8842 combines realistic scale styling with a compact crawler chassis. Its proportional throttle and steering control allow precise movements when tackling technical obstacles.
The 050 brushed motor provides smooth low-speed torque, while the professional 5A brushed ESC delivers delicate and linear throttle response. The worm gear differential provides strong self-locking characteristics, helping the crawler maintain its position during steep climbing.
The C8842 also features integrated thermal protection that helps protect the electronics when temperatures become excessive during demanding driving.
JJRC C8842 Key Features
- 1/30 Scale RC Crawler: Compact size for desktop and off-road crawling.
- 030 Brushed Motor: Smooth low-speed power for technical crawling.
- 5A Brushed ESC: Delicate and linear throttle response.
- Worm Gear Differential: Strong self-locking characteristics for climbing.
- Thermal Protection: Helps protect the motor and electronics from excessive temperature.
- Realistic Body Design: Detailed scale appearance for an authentic RC experience.
Frequently Asked Questions About JJRC C8842 Body Installation & Removal
How do I install the JJRC C8842 body shell?
Align the body shell with the chassis mounting points, position the body clips correctly and gently press the clips into place until the body shell is securely mounted.
How do I remove the JJRC C8842 body shell?
Carefully release the body clips from their mounting points and gently separate the body shell from the chassis. Avoid using excessive force or twisting the shell.
Where are the JJRC C8842 body clips?
The body clips are located at the body shell mounting points. Refer to the installation photos and video above to identify the correct position.
Can I remove the C8842 body shell for maintenance?
Yes. Removing the body shell provides easier access to the chassis and internal components for inspection, cleaning and routine maintenance.
Why is the C8842 body clip difficult to install?
The body shell and chassis mounting points may not be correctly aligned. Reposition the shell and check the clip alignment before applying pressure again.
Is there a JJRC C8842 body disassembly video?
Yes. The complete JJRC C8842 body installation and disassembly process is demonstrated in the YouTube tutorial embedded on this page.
Watch the Complete JJRC C8842 Body Installation & Disassembly Tutorial
Prefer a visual demonstration? Watch the complete JJRC C8842 RC crawler body shell installation and removal video to see the body clip position, alignment, installation and disassembly process step by step.
JJRC C8842 RC Rock Crawler – Compact and Ready to Crawl
The JJRC C8842 is a 1/30 scale full-proportional RC desktop crawler designed for realistic crawling and compact off-road adventures.
Its realistic body design, smooth proportional control, 050 brushed motor and crawler-focused drivetrain make it suitable for desktop crawling challenges as well as outdoor terrain.
Whether you are installing the body shell for the first time or removing it for maintenance, understanding the correct body clip position and installation sequence makes the C8842 easier to use and maintain.
